Prompt Engineering a Playwright Test Results Dashboard

In modern web development, automated testing is crucial for ensuring application reliability. Playwright has emerged as a powerful tool for end-to-end testing, but visualising test results in a meaningful way can be challenging. Particularly to non technical stakeholders. To address this, I embarked on a journey to create a custom dashboard that centralises and displays Playwright test results effectively across multiple projects and teams.

The Requirement

In 2025, I was involved in a large scale project acting as a Lead Quality Engineer. I was overseeing the work of a team of fellow Quality Engineers responsible for building and maintaining a Playwright based automation framework.

After a lot of hard work, we had it all set up and working great. Daily scheduled runs on our CI server. Fast, reliable API based health checks. Visual tests. Even schema validation and post deployment smoke tests.

We were covering three separate applications, multiple back end services, and running these tests against up to ten different test environments on a daily basis.

Although our tests were capable of the task, we were struggling with reporting. Having to hunt through CI logs and stack traces for errors reported by failing tests became a serious burden. Downloading Playwright’s native HTML reports as CI artifacts was also a slow process. The files are often large, easily sometimes exceeding 200MB, and no one could do this unless they were versed with the CI pipelines and had the appropriate access level.

I had an idea forming; one I had pondered on for many months even before being a part of this particular project. I knew the answer to our reporting and general debugging woes was some form of centralised solution. A results dashboard where all our daily run results were fed into.

At first, the approach seemed clear. To purchase a turnkey solution to the problem. There are many on the market such as BrowserStack’s recent offering. However, none come for free and, when working at large enterprise companies, procurement is often a slow, draining process for all concerned. There was also the inevitable problem of project budgets and managing to secure the funds needed for such a product.

Ultimately, I wanted to devise an in-house solution.

It wasn’t until midway into 2025 that a potential route to achieving this became clear…

A Prompt Engineering Approach

It started with a prompt. An experiment. I have been working with LLMs as part of my role now on a daily basis. They have changed the landscape of test automation entirely.

I got into a conversation about the problem I had. The solution I wanted to achieve and the context behind it.

Ideas flowed, many got discarded early on. But one stuck: Use the JSON output you can enable Playwright to generate as a means to log results into a centralised location. Once the JSON is available, the rest is simply a matter of working with the data. I say simply...

I had another major limitation to deal with. How to host such a centralised repo. The conventional way would be to host a site, create a database, and then integrate an API for the calling code to send its JSON to.

I couldn’t do this due to the constraints I was working with within the company. No means to spin up such a solution without months of deliberation with the powers that be.

What I did have access to was an internally hosted GitHub instance and I knew I could easily spin up a repo there. Not only that. I also knew GitHub allowed you to host static webpages via GitHub Pages.

However, our particular project was using Azure DevOps. It is never straightforward!

Then the LLM struck gold (Claude Sonnet 4.5 in case you wondered). It suggested a static website, hosted in GitHub Pages, within a repo that stored the JSON and then used JavaScript to parse, inspect, and display the data within the JSON files.

Playwright’s JSON reporter output structure is similar to JUnit or other test runner output structures. It contains all the metadata associated with a particular test run. It is easy to enable it in Playwright’s config file.

So, the answer to our first piece of the puzzle was identified. Host a repo and static site for storing and displaying the JSON results files.

But then came the next challenge. How to get the JSON from multiple different CI servers, pipelines, and projects into the centralised repo after they get generated post test run.

Sonnet was quick on the draw: git remote pushes.

Instead of using an API, I could use Git to remotely push the JSON to the repository. The only requirement to achieve this was to ensure the calling repos had a PAT token setup granting them access to the dashboard's repo. Voila!

node ./.github/scripts/process-report.js
# Stage and commit the regenerated changes
git add .
$stagedFiles = git diff --staged --name-only
if ($stagedFiles) {
  $fullCommitMessage = "Update test results for commit $CommitSha - $CommitMessage"
  git commit -m $fullCommitMessage
  Write-Host "[OK] Successfully regenerated and committed report"
  return $true
}

And so the work started. I prompted, conversed, tested. For many weeks. A vibe-coded solution was formed. Quirky at first. Not really good enough, yet.

I took the driving seat for a while. Played with the CSS, and fiddled with the increasingly complex JavaScript functions responsible for inspecting the JSON and figuring out the test metrics.

async renderSummaryCards() {
  const totalRuns = this.filteredData.length;
  const passedRuns = this.filteredData.filter(
    (run) => run.status === "passed",
  ).length;
  const successRate =
    totalRuns > 0 ? Math.round((passedRuns / totalRuns) * 100) : 0;
  const avgDuration =
    totalRuns > 0
      ? Math.round(
          this.filteredData.reduce((sum, run) => sum + run.duration, 0) /
            totalRuns,
        )
      : 0;
  const totalTests = this.filteredData.reduce(
    (sum, run) => sum + run.passed + run.failed + run.skipped,
    0,
  );
  const totalFlakyTests = this.filteredData.reduce(
    (sum, run) => sum + (run.flaky || 0),
    0,
  );
}

At times, it seemed like it was going to prove a little too ambitious. I just couldn’t get things to work reliably. Metrics were not calculated correctly. Performance was also sluggish.

But I persevered. Within a month, I had a proof-of-concept site hosted in GitHub Pages, some test JSON to play with, and a working pipeline job from our test automation repo sending its JSON result file to the GitHub repo via a git remote push.

The LLMs evolved too. 2025 was a wild ride in this regard. All of a sudden, Gemini 3 hit along with Claude Opus 4.5.

Things started to seriously take shape.

Iterating the Solution

I burned GitHub Copilot credits well into the night. Then countless hours of testing followed. Then one day in early November 2025 I had something I felt was good enough.

It let me post JSON to it from multiple projects (some using Azure Devops, others using GitHub Actions). It displayed the results. It was performant. It looked… good.

There is a lot of detail here I haven’t covered. The innards of this solution are rather intricate. For example, the actual JSON analysis is done within a JavaScript file that resides in the centralised repo. That first gets pulled by the calling repos' pipeline jobs, then gets executed via Node.js as a command. The script then finds the results JSON for that run, inspects it, and spits out the summarised data into a manifest file. Think of that as a log of all the test runs over time. It timestamps the run, provides high level info, and the project etc associated with that particular run. It then pushes that manifest file (along with the JSON) to the central dashboard repo.

There are also weekly GitHub Actions scheduled jobs within the dashboard repo that compress the JSON files and cleanup the non compressed files. This keeps the repo size as small as possible.

So many other things! But ultimately, I did it. Using a lot of iteration, prompting, and good old fashioned testing.

The Playwright Test Results Dashboard is now several months old and is being used by five separate projects within the company. There are thousands of JSON files now and many weeks worth of test run data available for trends etc to be identified and displayed. Data can be filtered by project, too, meaning teams can opt to only see the metrics specific to the tests they own and run.

I’ve also been able to encourage others within the company to contribute to the dashboard. Someone had a nice idea of adding DORA metrics and a section for identifying the slowest running tests for each suite/run. They successfully raised a PR for these features and we merged the changes after a series of unit test and merge checks verified no regression issues were likely to sneak in. And yes, we use Playwright to test the dashboard too!

Most importantly, it hasn’t fallen over.. yet! And we use it daily. In fact, a colleague even thought it was part of Playwright. Job done.

Key Features

• Centralised reporting solution with multi-project / team support

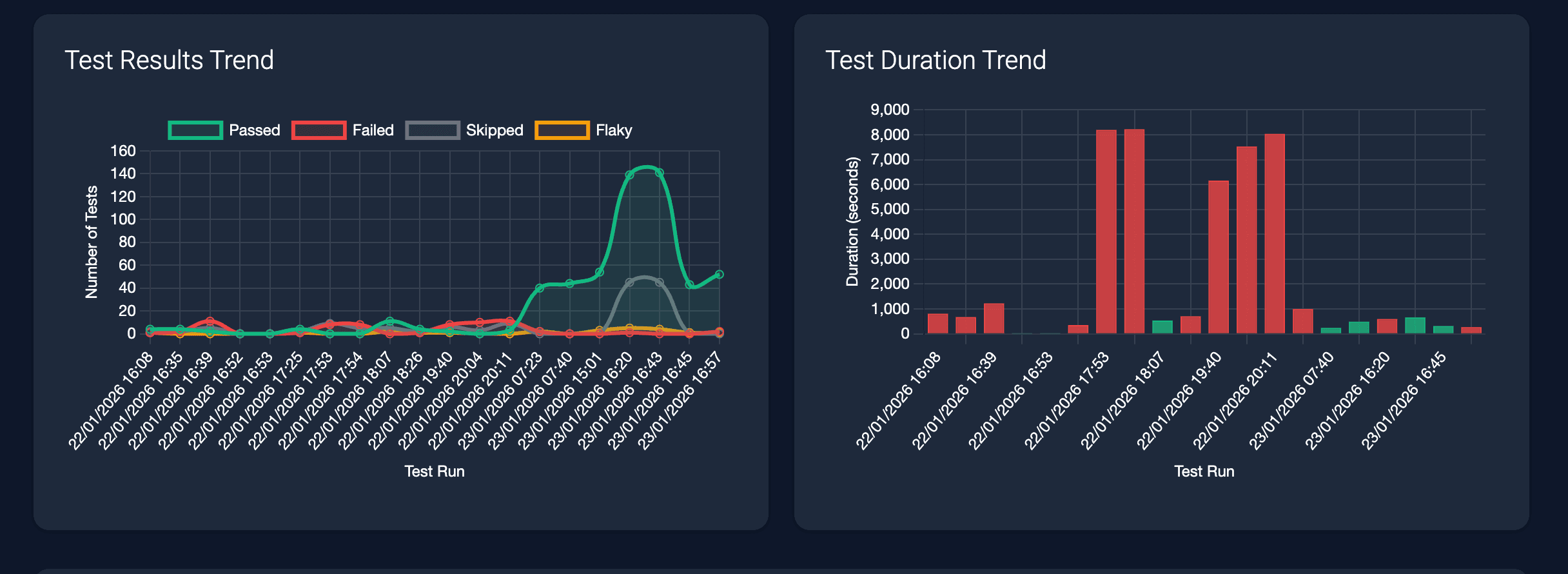

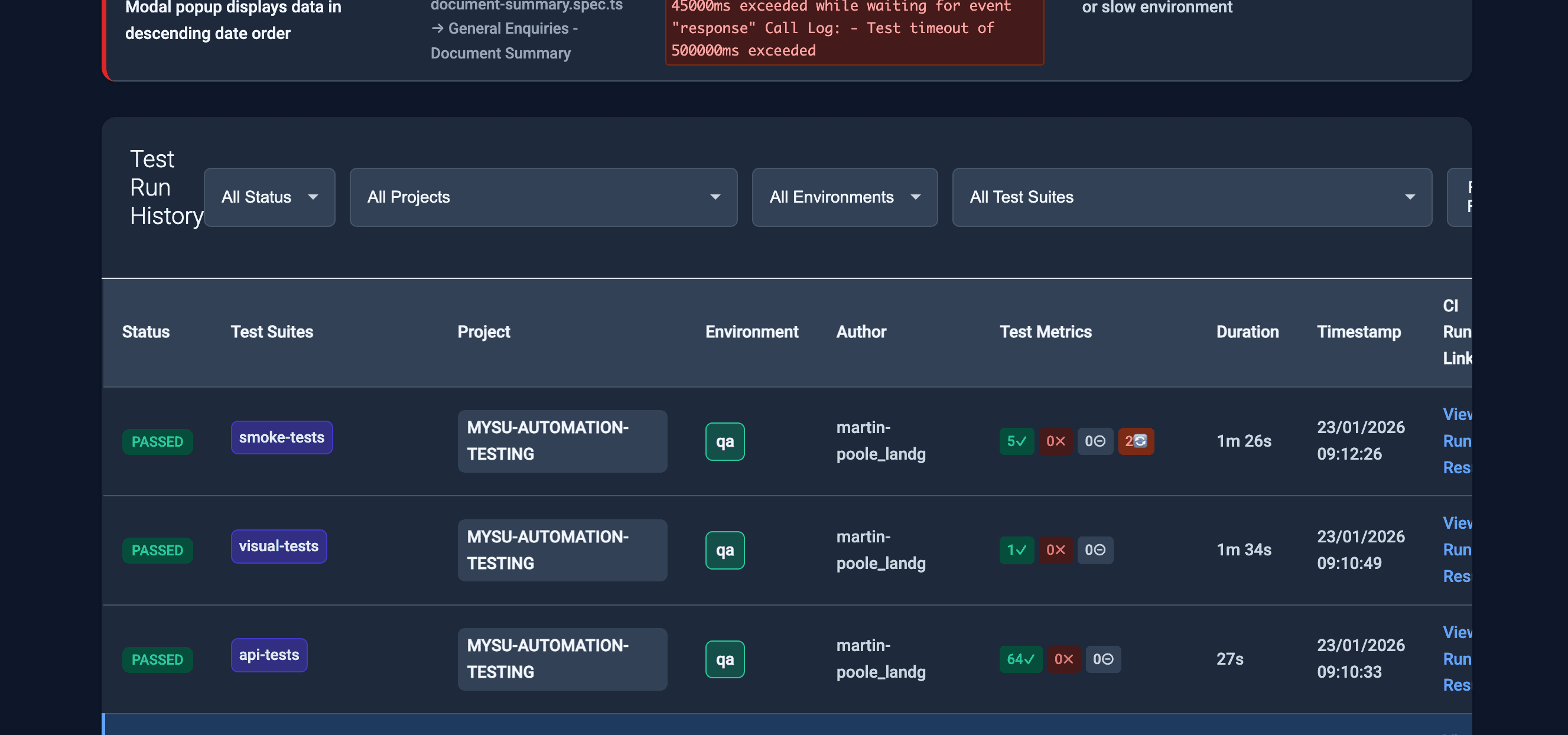

• Clean, fresh UI detailing test metrics, trends, graphs, and a history of runs with links to the CI runs.

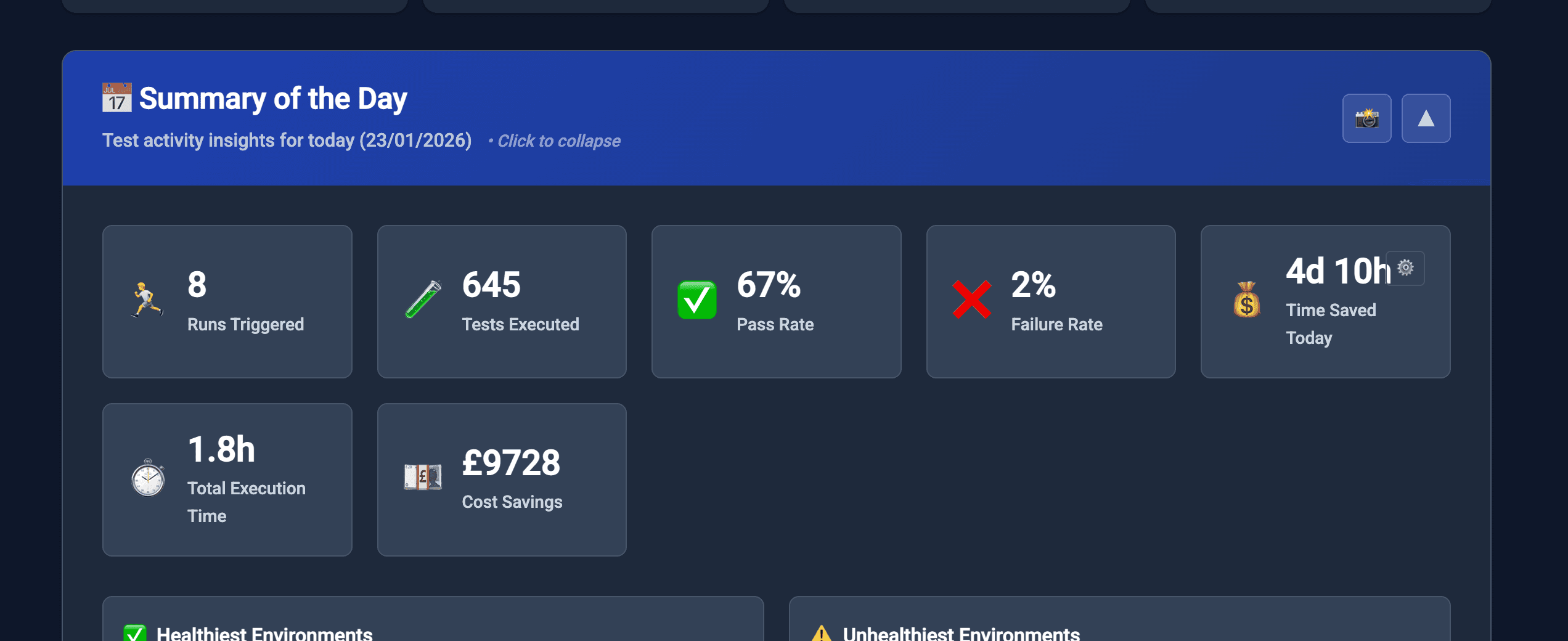

• DORA, ROI metrics (ROI can be configured by setting hourly rates, manual test time equivalents, etc)
• Failure trends, root cause analysis
• Dark mode!

Takeaway

Prompt engineering enables you to build the tools you need but probably only dreamt of up until now. It can also enable you to save your company money in the long run by having the ability to take on a build-it-yourself mindset.

The dashboard I built would have taken months of full time work to create without leveraging LLMs and utilising effective prompting.

However, it is not magic. You still need to understand the code and architecture behind what the LLMs create. You need to test it and apply an iterative approach to feature releases and feedback. Early discussions are also key. Don’t waste time (and tokens) building something that ends up being unsuitable. Get it right first-time by entering into discussions around the problem, the context, and any constraints you might face.

Happy prompting.
